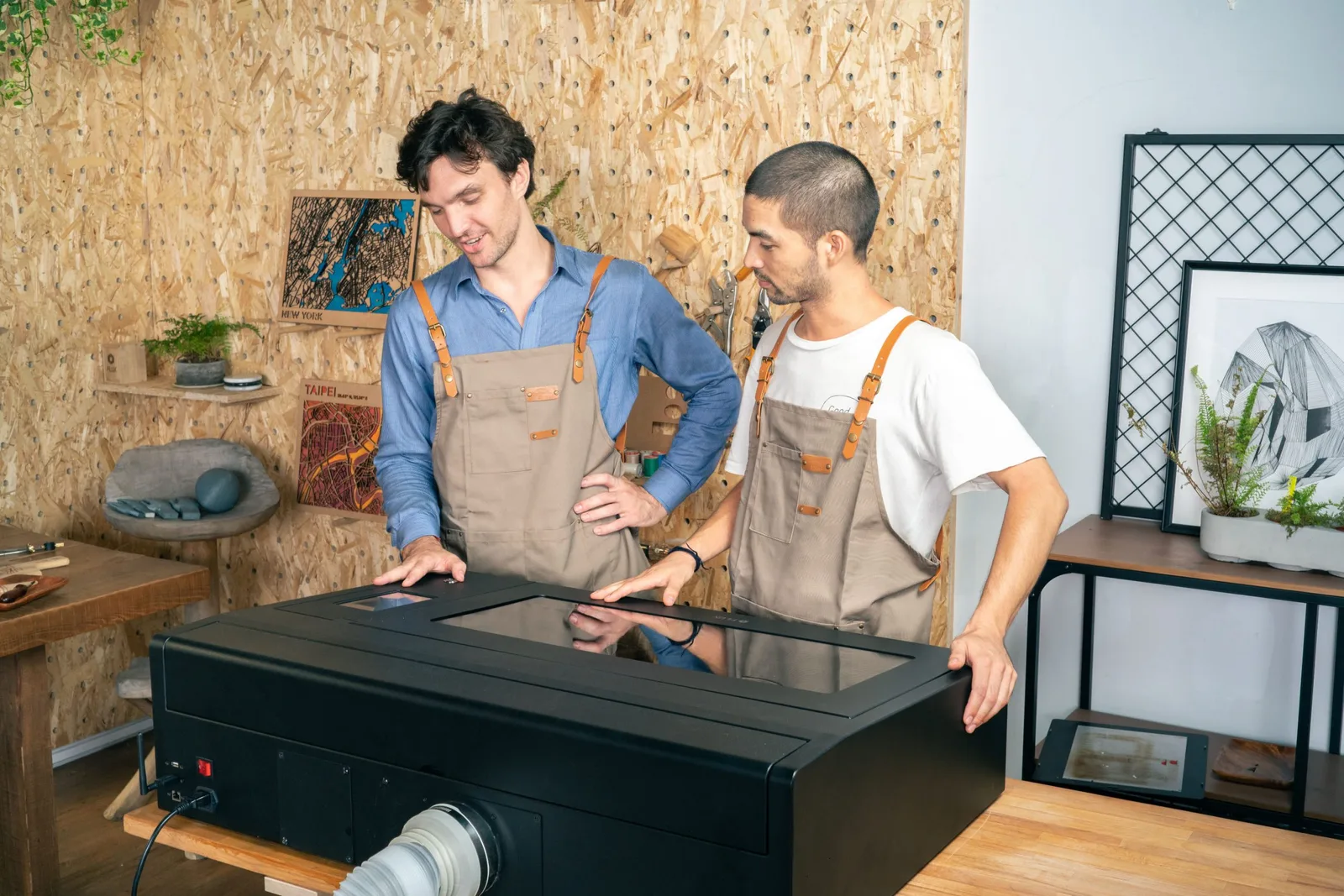

Beambox

The Smart Desktop Laser Cutter & Engraver

Made for Creativity

Free Your Inner Artist and Bring Your Ideas to Life.

Beambox is a powerful laser cutter and engraver that lets you shape, cut, and engrave on materials like wood, leather, acrylic, and cardboard.  Beambox meets all your expectations, and goes way beyond.

From Your Biggest Ideas To Your Greatest Work

Beambox offers a maximum work area of 40 x 37.5 cm² (15.7” x 14.7”) and cuts up to 10mm thick (varies by material). With our highly integrated software Beam Studio, your imagination is the only limit.

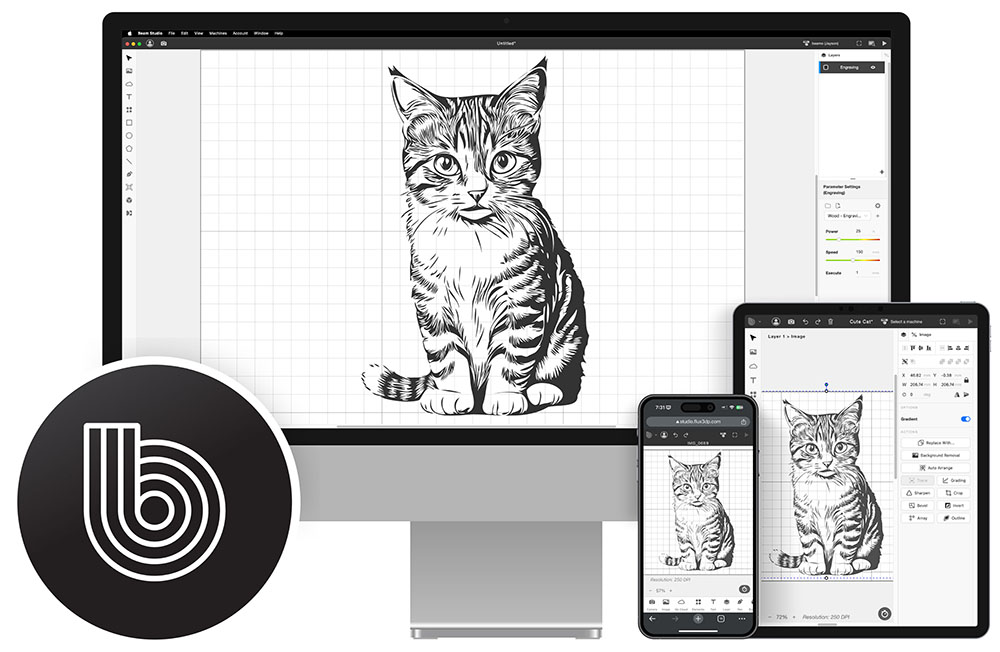

Friendly Software for All

Beam Studio is the highly integrated software compatible with Windows, macOS and Linux, its intuitive user interface allows you to easily access all features of Beambox. Beam Studio enables multi-computer control and supports JPG / PNG / SVG / DXF files.

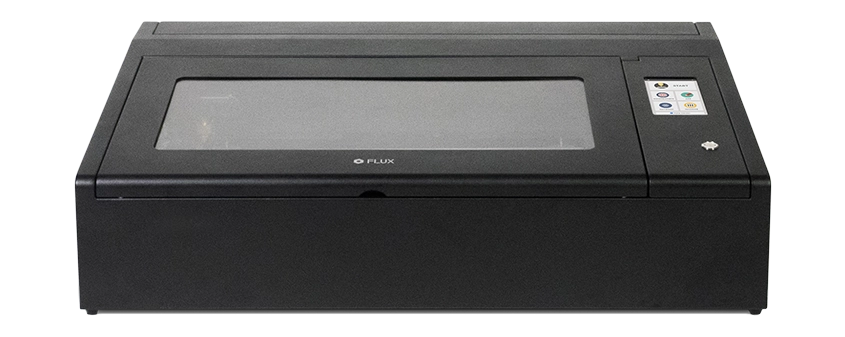

Intuitive and Ready to Use

Control and monitor your Beambox at your fingertips with the touch panel. Make sure your design is perfectly aligned using the built-in camera to preview the work area. Compact water cooling system takes simplicity to a whole new level.

What You See Is What You Get

The built-in camera allows you to preview your design and the work area to make sure everything is perfectly aligned.

Premium Laser Performance

Equipped with premium quality rails, the performance and the durability of Beambox is unparalleled. Integrated ventilation devices prevent the materials from catching fire and extracts smokes and fumes.

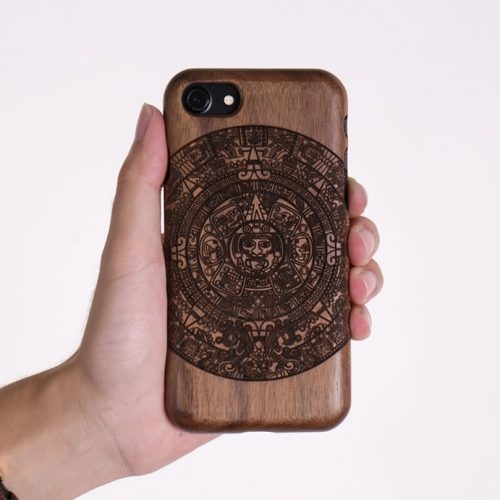

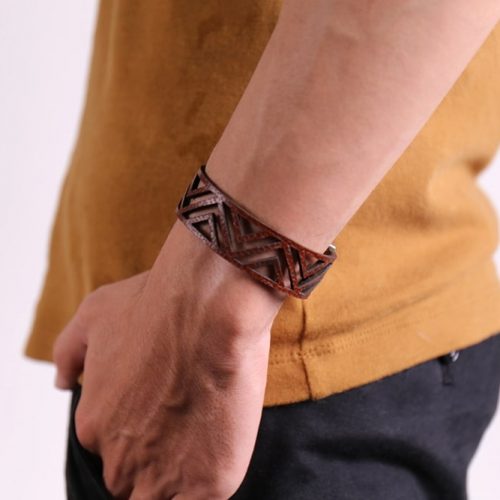

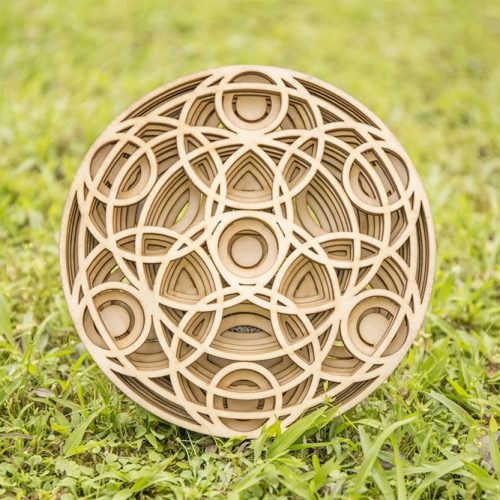

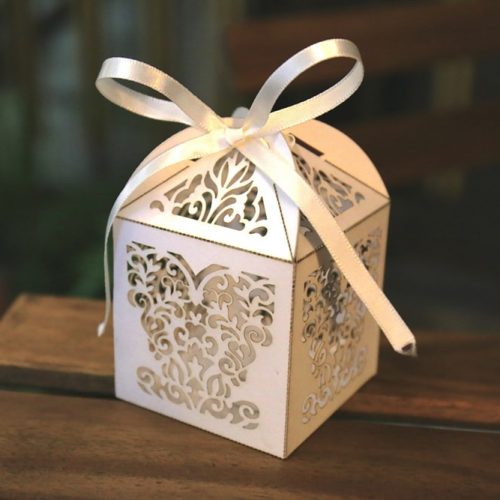

Engrave and Cut Through a Versatile Range of Materials

Customize a dynamic range of products in any unique shape or style,  add on accessories allow for even more configurations and materials including steel and rounded objects, perfect for your small business needs.
Materials
Beambox
Beambox Pro
Engraving
Wood
5mm
8mm
Acrylic
5mm
8mm
Leather
2.5mm
4mm
Cardboard
3mm
4.5mm
Bamboo
5mm
8mm
Fabric
15mm
18mm
Rubber
Anodized Metal
Glass
Cement
Stone
Stainless Steel *
(with Steel Stainless Spray)

Compatibility

Beambox Supports Various File Formats

SVG / PNG / JPG / DXF / PDF / AI
Adobe
Illustrator
Adobe
Photoshop
Affinity
Design
Autodesk
AutoCAD
SketchUp
SolidWorks
Sketch
Corel Draw
Rhinoceros

Hear What the Community Has to Say

Over 10,000 satisfied customers are using FLUX Lasers to create meaningful projects or build a fulfilling side business. Listen to some of what they have to say.

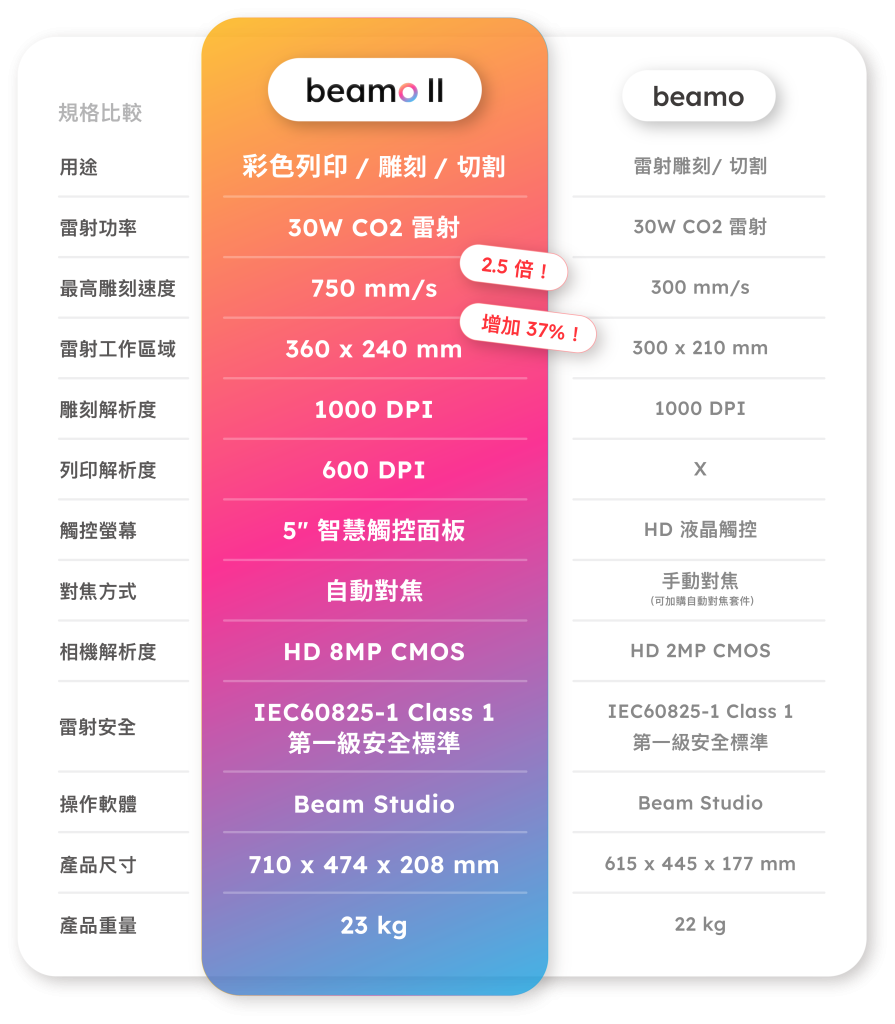

Tech Specs

Models

beamo
Beambox
Beambox Pro
HEXA

General

Dimensions​
615 x 445 x 177 mm
800 x 670 x 250 mm
990 x 670 x 250 mm
1110 x 670 x 273 mm
Weight​
22 kg​
40 kg​
48 kg
58 kg
Work Area
300 x 210 mm
400 x 375 mm
600 x 375 mm
730 x 410 mm
Work Area Depth​
45 mm
80 mm
80 mm
125 mm
(Autofocus: 60mm)
Camera Preview Area
300 x 195 mm
400 x 360 mm
600 x 360 mm
730 x 395 mm
Power
AC 110V/220V
Speed
1-300 mm/s
1-900 mm/s
Touch Panel
1024 x 600 LCD
Camera
HD CMOS
I/O
Wi-Fi / Ethernet / Direct Network Cable
Wi-Fi / USB/ Ethernet / Direct Network Cable

Laser​

Spec​
30W CO2 Laser
40W CO2 Laser
50W CO2 Laser
60W CO2 Laser
Wavelength
10640 nm
Cutting Thickness
0-5 mm
(varies by material)​
0-10 mm
(varies by material)​
0-12 mm
(varies by material)
10 mm+
(varies by material)

some materials may require multiple passes

Software

Mode
Vector / Graphic (monochrome, gray scale)
Operating System
Windows / macOS / Linux
File Type
JPG / PNG / SVG / DXF / AI / PDF

FAQ

General
1. What is Beambox?

Beambox is the smartest desktop laser cutter & engraver made for your ideas. Equipped with the powerful CO2 laser, Beambox can cut and engrave on organic materials and even engrave on selected metal. With its revolutionary design and intuitive user interface, you’re just steps away from the fun of making amazing things.



2. What is the difference between Beambox Compact and Beambox Pro?

The biggest difference is the laser. Beambox uses a 40-watt laser and can cut up to 10mm, while Beambox Pro uses a 50-watt laser and cuts up to 12mm. The size of Beambox Pro is relatively bigger.



3. Will Beambox be difficult to set-up?

Beambox supports files that you’re familiar with, such as JPG, PNG, SVG, DXF, AI and PDF, and our software is very easy to use, with the tutorial provided, you will be making things in no time!



4. I’m new to all this, what if I have some questions?

You can easily find answers to the most common questions on our Help Center, which we update regularly. You can also contact our customer support online and our support team will be more than happy to help you.



5. What is the warranty?

We provide a 12 month warranty for Beambox, and 3 month for the laser tube. If you’ve encountered an issue, please contact our technical staff, and our staff will determine the suitable fix. Parts and tutorials will be provided if needed, shipping will be charged.

About Shipping
1. How much does shipping cost?

To find out about shipping, go to your shopping cart and select your country from the drop-down list.



2. Will there be customs and taxes?

The recipient of an international shipment may be subject to import taxes, customs duties and fees which are levied once a shipment reaches the recipient's country. Additional charges for customs clearance must be fulfilled by the recipient. Customs clearance procedures may cause delays beyond our original delivery estimates.

About Laser
1. What's the wattage of the laser tube?

Beambox is equipped with a CO2 laser tube operating at 10,640 nm averages 40W for Compact, and 50W for the Pro.



2. What materials can Beambox cut and engrave?

Beambox can cut and engrave on wood, leather, cardboard, acrylic, rubber, foods and more, the maximum cutting thickness is 10mm (varies by materials) for Compact. The Pro model can cut up to 12mm (varies by materials). Beambox can also engrave on anodized aluminum and stainless steel, but the power levels are not enough to cut.



3. Is it possible to cut deeper than the maximum cutting thickness stated in the specs?

In fact, you can. The maximum cutting thickness stated in the specs are referred to a single cut with an average speed. If you slow down the speed or re-do the cut, you can cut deeper. For example, the maximum cutting thickness for acrylic is 5mm, you can cut 10mm or deeper if you slow down the speed or re-cut several times.



4. Does the camera cover the complete work area?

Almost, the camera will miss the upper margin by 1cm. Please see the specs for the dimensions.



5. What safety precautions should I take?

Beambox is designed with various safety measures, such as smart lid detection and emergency power switch. Nevertheless, it is required that you never leave Beambox unattended while operating.



6. Can Beambox cut metal?

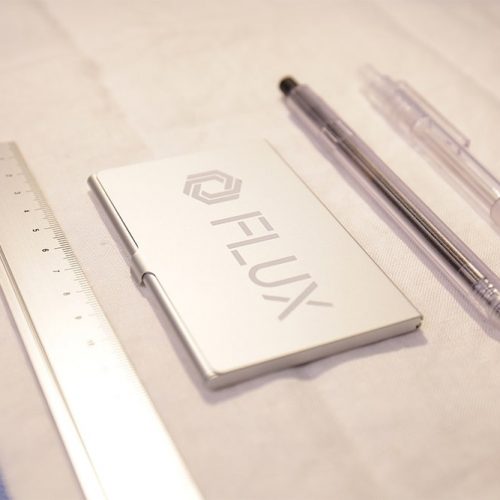

The power levels are not enough to cut, but it can etch on anodized aluminum and stainless steel with the use of our specialized coating.

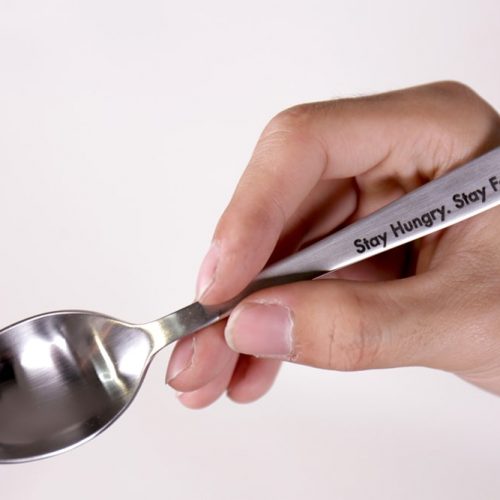

7. What is FLUX Stainless Steel Coating?

You can engrave on stainless steel with Beambox only when it is coated with our specialized coating. Before you start, cover the material first with the coating for lasting results.

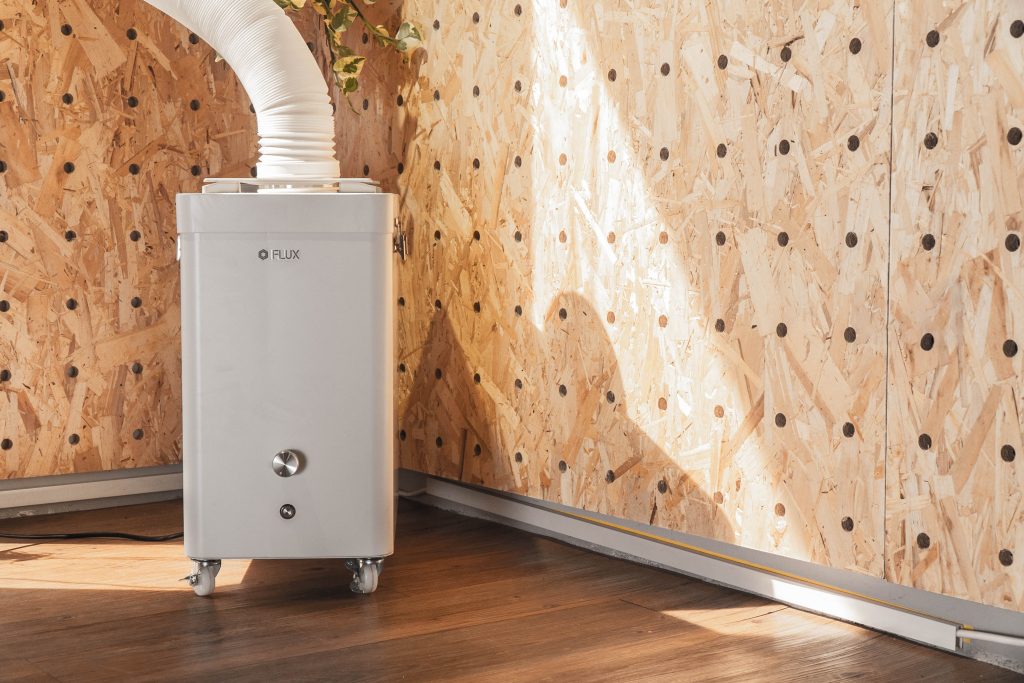

8. How do I vent the machine?

Beambox is equipped with an air pump and a powerful exhaust. The air pump prevents the material from catching fire while the exhaust extracts smoke and fumes.



9. What is the size of the work area?

The work area is 15.7” x 14.7” x 3.1“ (40 x 37.5 x 8 cm) / 23.6” x 14.7” x 3.1 (60 x 37.5 x 8 cm) There’s a honeycomb structure tray for materials that are up to 3 cm (1.18”) thick. The tray can be adjusted manually or removed to accommodate materials up to 8 cm (3.15”) thick.



10. Where should I put my Beambox?

The laser creates smoke and fumes when operating, we advise you pick a well-ventilated location and use the included exhaust hose for outdoor venting.



11. What maintenance procedures are there?

To ensure the quality of the laser engraving or cutting, you should check and clean the lenses and mirrors regularly. Usually once every week, but it depends on your usage and frequency.. Lubricate the rails and check the water level of the cooling tank regularly.



12. Are there any consumables?

For general usage, the laser tube lasts 6 months to 1 year, The lenses and mirrors lasts 1 year or more under regular maintenance. If replacement is necessary, you can refer to our tutorial to change the parts on your own. We’re still working on the pricing and we will update them as soon as possible.

About Software
1. Is Beam Studio free?

Yes, it is totally free. You’re more than welcome to download it even before receiving your Beambox. We’d love to hear your feedback!



2. What file types does Beam Studio support?

Beam Studio is compatible with JPG, PNG, SVG, and DXF.



3. What is the touch panel?

You can start, pause and stop task, control, and monitor the status of your Beambox all with a touch of the finger with the touch panel.



4. Can Beambox operate independently?

If you import the files to Beam Studio first, the files will be uploaded to Beambox before starting the task, so you can disconnect your computer from Beambox anytime. You can also import the files to Beambox directly using USB or choose from the recent task list on the touch panel.



5. How to connect Beambox with my laptop?

You can connect via Wi-Fi or Ethernet.



6. What operating systems does Beam Studio support?

Beam Studio is compatible with Windows, macOS and Linux.

台灣限定預購專案 FAQ

一般
1. 請問 Beambox 和 Beambox Pro 的差別?

Beambox 的雷射功率為 40 瓦,視材料特性,切割最大厚度可達 10mm;而 Beambox Pro 的功率為 50 瓦,切割最大厚度可達 12mm。 Beambox Pro 的機器大小相對也比較大,建議您可以視使用需求選擇機型哦!

2. 如何升級成 Beambox Pro?

只要加價 25,000 元就能將您的 Beambox 升級到 50W,工作區域加大至 60 x 37.5 公分!

3. 我是有購買 FLUX Delta 產品系列的用戶,預購上有老朋友優惠嗎?

當然有!老客戶請先登入FLUX ID後再前往預購頁面,就可以在下訂 Beambox 時直接獲得 95 折的老朋友優惠!一人限用一次老朋友優惠。若結帳時發現沒有老朋友折扣,請聯絡客服人員。

4. 請問若是學校或公司想要大量採購,該如何進行?

若有大量採購 Beambox 需求的單位,請直接來信 [email protected] 詢問,我們團隊將有專人為你協助。

關於訂單
1. 請問付款方式有哪些?可以用匯款的嗎?

透過商城可以使用信用卡或匯款付款,不會有國際平台上麻煩的匯差問題。

2. 請問商品訂購需要負擔運費嗎?

Beambox系列台灣免運費,運送地址如無電梯,僅能送至一樓,敬請見諒。

3. 會有發票嗎?若需要統編要怎麼申請?

一律會以電子發票寄至訂購信箱,若需統編,請在訂單相關欄位內填寫。

4. 請問 FLUX ID 是什麼?

FLUX ID 是 FLUX 用戶的專屬帳號,可以先註冊帳號再下訂、或是下訂之後透過認證信創建,也是之後管理訂單、追蹤推坑和出貨進度用的超重要系統。

Beambox 產品 FAQ

一般問題
1. 什麼是 Beambox?

Beambox 是為創意而生的桌上雷射雕刻機,有著突破性的機器設計和人性化的操作環境。搭載 40W/ 50W CO2 雷射光束,能夠切割與深淺雕刻有機材料,適合各種需求與情境,任何人都能享受創作的樂趣。



2. 使用 Beambox 需要先學習任何技能嗎?

Beambox 運用的檔案為大家很熟悉的 2D 檔案格式,如 JPG、PNG、SVG、DXF 等。而我們的軟體操作上十分簡單,入門者可以跟著軟體教學一步一步操作,任何人都能很快的開始使用 Beambox 實現創意!



3. 我是新手,若碰到不會操作的問題時怎麼辦?

根據服務全球 4000 多位用戶的經驗,我們持續改進而完善了產品支援中心,讓用戶每次碰到問題,都能順利找到相關資源解決。當然,你也可以透過網路客服系統,聯繫我們團隊的客服和技術人員,讓我們直接幫你解決。



4. 請問產品有提供保固服務嗎?期間多長?

機台保固12個月,2018/8月前出廠之機台保固18個月,雷射管保固3個月。機殼或零件外觀細微瑕疵 (如顆粒、細痕、不平整),不在保固範圍內。保固期限內將免費提供零件,並透過線上的方式協助使用者自行更換。如需工程師到現場維修,將酌收出勤費用 1,500 元及交通費,恕無法指定維修日期。台北市內免收交通費,其餘縣市視距離遠近與便利性而定。交通費以 2000 元為上限。到府維修區域不含花東、南投、屏東及外島縣市。

關於雷射
1. Beambox 使用的雷射規格是什麼?

Beambox 搭載的雷射為 40W CO2 10640 nm,Beambox Pro 的規格則為 50W CO2 10640 nm。

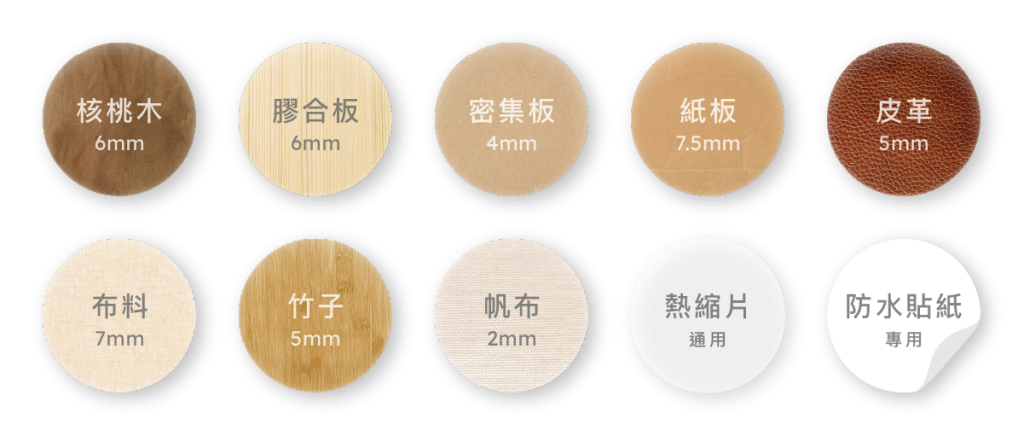

2. 可以使用的材質有哪些?

Beambox 能精準切割與雕刻木頭、皮革、紙板、壓克力等有機材料,切割厚度可達 10mm (視材料而定);Beambox Pro切割厚度可達 12mm (視材料而定)。熔點較高的材質如陽極金屬和玻璃,可以雕刻但不能裁切。



3. 可以切割比規格表更大的深度嗎?

其實可以。例如規格表壓克力切割深度為5mm,是一般速度一次切穿的能力,若將速度大幅放慢,或重複路徑切割,可以達到10mm或更深的切割厚度。



4. 相機預覽區域是否有完整覆蓋最大工作區域?

差一點點。相機沒辦法拍到最接近上方邊緣約1cm的區域,請見規格表的相機預覽區域尺寸。



5. 雷射聽起來很危險,要特別注意什麼嗎?

Beambox 在各種安全措施的設計上都相當完善,有智慧開蓋偵測與緊急電源開關,保障使用者的安全。



6. 可以切割金屬嗎?

Beambox 僅能在陽極金屬上做雕刻。



7. FLUX 不鏽鋼雕刻專用噴劑是什麼呢?

不鏽鋼本身不易吸收CO2雷射光,務必配合專用噴劑才能雕刻。請您先在乾淨不鏽鋼表面均勻噴上噴劑之後再進行雕刻,會讓雕刻效果明顯且水洗不掉色。



8. Beambox是否具有吹氣跟排氣的功能?

有的。Beambox內建空氣幫浦與強力抽風扇,幫浦吹氣可以避免加工物體燃燒,並有抽風扇將切割廢氣排出機外。



9. 是否配有蜂巢狀切割平台?

有的。蜂巢狀切割平台具有手動升降功能,方便調整焦距,可以放置最厚3公分的板材。移除升降平台後,可以放置最高8公分的物體。



10. 建議的安裝環境?

建議在可開窗的環境安裝。雷射切割會產生燃燒廢氣與粉塵,請使用隨機附贈的風管將廢氣直接排出窗外。在開闔機箱過程也會有少許廢氣溢散到室內,因此室內建議要有足夠通風。



11. 機器需要哪些維護?

反射鏡及聚焦鏡需要定期擦拭,頻率按使用情況與材料而定,正常約每週清潔一次。線性滑軌建議定期上油保持潤滑。若長久使用後,散熱水箱水位偏低,可添加蒸餾水補充。



12. 有什麼耗材?壽命大約多長?

雷射管保固 3 個月,一般使用期限為半年到一年,40W 雷射管 5,990 元, 50W 雷射管 8,990 元。反射鏡與聚焦鏡在良好清潔下不會故障,如需更換,聚焦鏡 600 元,反射鏡 300 元。

軟體使用
1. Beam Studio 是免費的軟體嗎?

是的,完全免費!就算還沒有購買機器,也歡迎你自由下載試用,很希望得到更多的回饋想法!



2. 支援格式分別有哪些?

JPG、PNG、SVG、DXf、AI 和 PDF。



3. 請問觸控面板的功能?

透過鑲嵌於機器外殼上的高解析度觸控面板,使用者可直接檢視機器狀態與工作進度,無需打開電腦就可操作機器!



4. 是否可以脫離電腦單機運作?

檔案會先傳送到機器再開始工作,因此電腦可以關機或離開都不會造成工作中斷!沒有電腦亦可以直接從觸控面板選取最近工作或從隨身碟讀取工作內容。



5. 機器可以透過哪些方式連接呢?

您可以使用 Wi-Fi 或乙太網路連接機器。



6. 可以使用哪些作業系統呢?

Beam Studio 有 Windows、Mac 和 Ubuntu 版本,滿足各種需求!
